Dynamometer - THC Series
Dynamometer - THC Series

YOTA  Crane Weighing Type Dynamometer with shackle & shank hook.

Crane weighing type with shackle & shank hook. ( Capacity : 1 T to 5T)

  • It is portable, handy, yet robust equipment.
  • Extensively used in crane weighing, transmission towers, Railway signal telecommunication and many other industrial and laboratories use.
  • Available in different sizes of dial from 100 mm to 250 mm.
  • Supplied in a steel or wooden case with a Test Certificate and a performance guarantee of 180 days against manufacturing defects.

Accuracy : +_ 1% or one graduation within recording range of 11% to 100 % of the safe working load. Overload graduation 25% above SWL capacity.

Working Temperature Range : - 5 to 55 C & for higher temperature with Heat Shield.

This series is a crane weighing device to measure the load and crane testing. This is provided with a shackle at the top eye bolt while a has hook is provided at the bottom. Available in the capacity range : 1t to 100 t.

Uses and Application :
Cable Tensioning in Transmission Towers and Aeireal Ropeways.
Crane weighing.& Testing
Tensile testing and control
Fastener and anchor testing
Guying microwave towers
Railway signal telecommunication
Traction
Drawbar Pull Test
Testing Hoists and Blocks
Derrick Testing
Checking structural fabrication
Winch Testing
Transmission line Hardware testing
Sling Testing
Conveyor belt tensioning
Chain testing
Various Industrial & Research requirements.

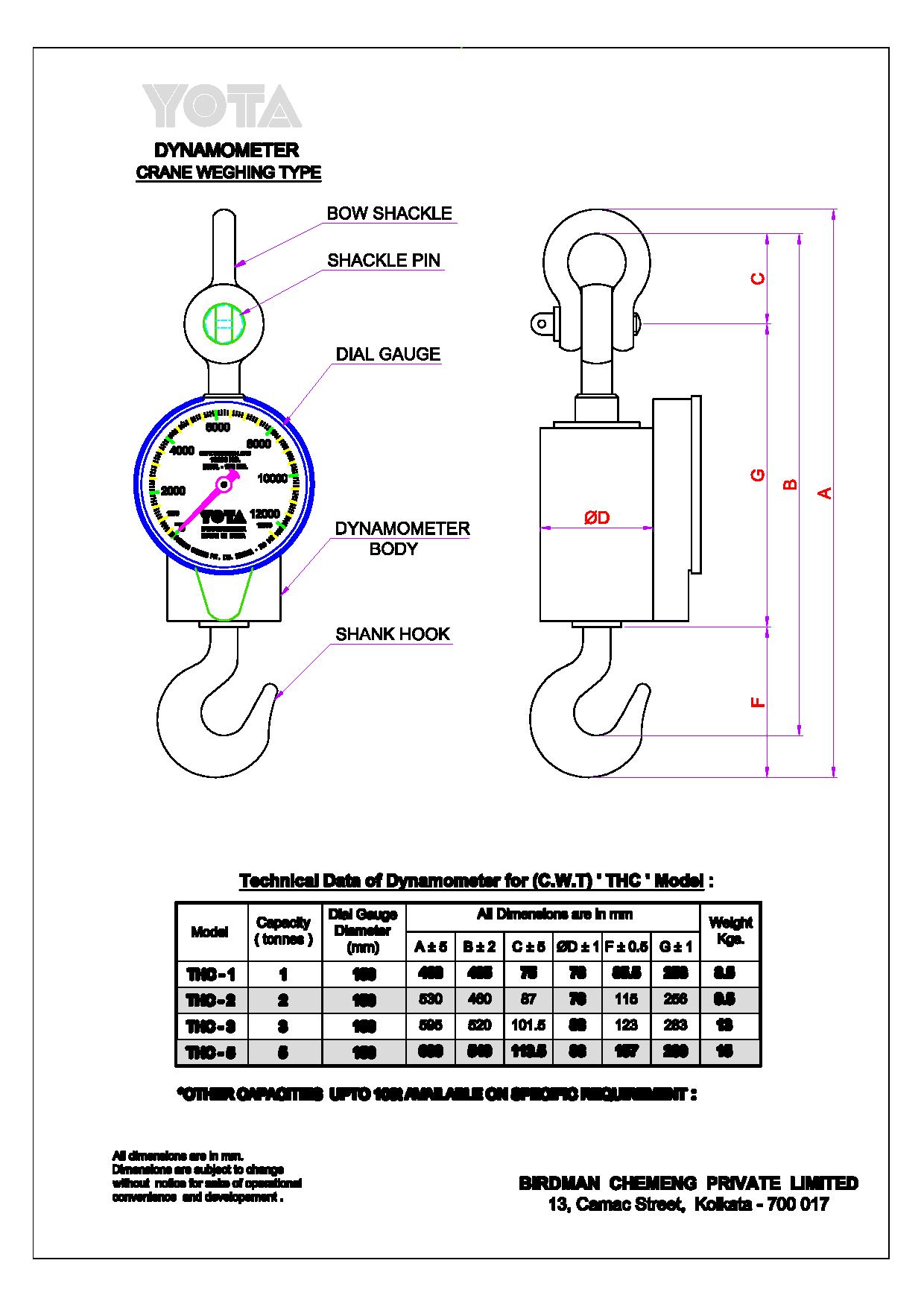

Click To view Technical Details
Model Capacity(Tonnes) Dial Gauge Diameter
All Dimension are in mm
A B C D F
Weight (Kg)
THC - 1 1 150 mm
468 405 75 78 85.5
8.5
THC - 2 2 150 mm
530 460 87 78 115
9.5
THC - 3 3 150 mm
595 520 101.5 88 123
13
THC -5 5 150 mm
630 549 113.5 88 157
14.5

Usage of YOTA Brand

  • Cable Tensioning & Traction in Transmission Towers and
  • Aerial Ropeways
  • Crane & Derrick - Weighing &Testing
  • Tensile Testing for Insulators
  • Fastener and Anchor Testing
  • Guying Microwave Towers
  • Railway Signal Telecommunication
  • Drawbar Pull test
  • Testing Hoists and Blocks
  • Checking Structural Fabrication
  • Winch Testing
  • Transmission Line Hardware Testing
  • Sling Testing
  • Conveyor belt tensioning
  • Chain testing
