YOTA Dynamometer is an equipment meant for measuring load and tension.

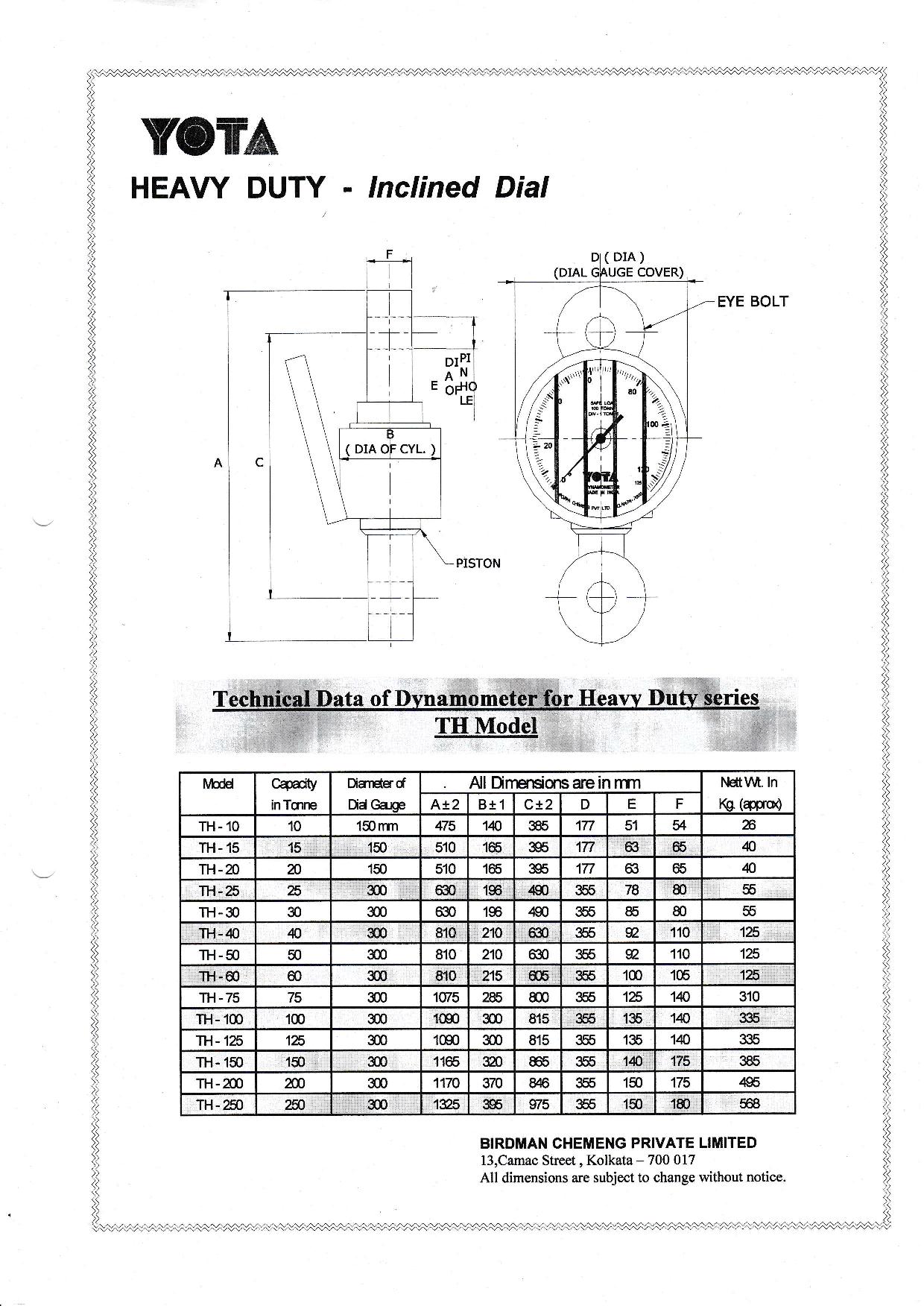

Heavy duty inclined dial ( from 40 t to 200 t capacity ) and Standard series with straight dial ( from 0.5 t to 30 t capacity).Crane weighing type with shackle & shank hook. ( Capacity : 1 T to 100 T)
- It is portable, handy, yet robust equipment.
- Extensively used in crane weighing, transmission towers, Railway signal telecommunication and many other industrial and laboratories use.
- Available in different sizes of dial from 100 mm to 250 mm.
- Supplied in a steel or wooden case with a Test Certificate and a performance guarantee of 180 days against manufacturing defects.
Accuracy : +_ 1% or one graduation within recording range of 11% to 100 % of the safe working load. Overload graduation 25% above SWL capacity.
Working Temperature Range : - 5 to 55 C & for higher temperature with Heat Shield.
This series is a crane weighing device to measure the load and crane testing. This is provided with a shackle at the top eye bolt while a has hook is provided at the bottom. Available in the capacity range : 1t to 100 t.
Uses and Application :
| Cable Tensioning in Transmission Towers and Aeireal Ropeways. |
| Crane weighing.& Testing |
| Tensile testing and control |
| Fastener and anchor testing |
| Guying microwave towers |
| Railway signal telecommunication |
| Traction |
| Drawbar Pull Test |
| Testing Hoists and Blocks |
| Derrick Testing |
| Checking structural fabrication |
| Winch Testing |
| Transmission line Hardware testing |
| Sling Testing |
| Conveyor belt tensioning |
| Chain testing |
| Various Industrial & Research requirements. |
