Compression Type Load Cell
Compression Type Load Cell

YOTA load cell is an equipment for measuring compression load.

Hollow Load CellThese are designed particularly to measure both compressive and tensile load. Available in the capacity of 5 t to 100 t. The dial gauge in most cases is connected with a flexible hose to keep the delicate dial gauge away from the loading point.

  • Extensively used for heavy machine installation, particularly turbine, stacker, Press Load measurement, and other compressive load determination in industry and laboratory.
  • Recording gauge is placed away from the load cell to protect against damage while In use. Gauge has an unbreakable glass in a protected metal case.
  • The Dial sizes available in 100 mm, 150 mm and 250 mm.
  • The load cell loading head is mounted over a concave spherical seat ( tilting is within 7.5 degree ) to make it self- aligning while loaded.
  • Accuracy : +_ 1% of FSD or on divn.
  • Operating temp : - 50 c to 550 c

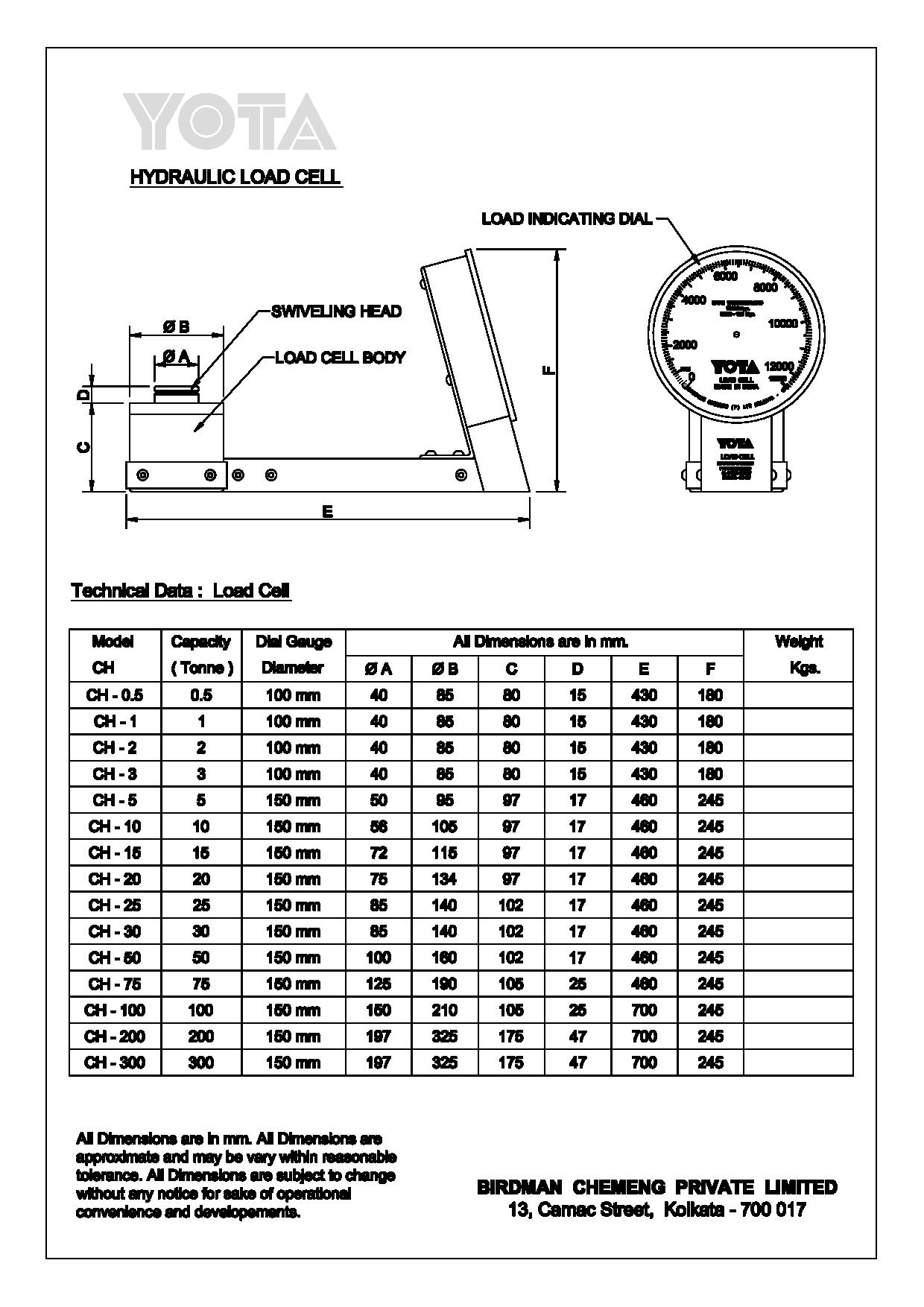

Click To view Technical Details
Model Capacity(Tonnes) Dial Dia (mm)
All Dimension are in mm
A B C D E F
CH - 0.5 0.5 100
40 85 80 15 430 180
CH - 1 1 100
40 85 80 15 430 180
CH - 2 2 100
40 85 80 15 430 180
CH - 3 3 100
40 85 80 15 430 180
CH - 5 5 150
50 95 97 17 460 245
CH - 10 10 150
56 105 97 17 460 245
CH - 15 15 150
72 115 97 17 460 245
CH - 20 20 150
75 134 97 17 460 245
CH - 25 25 150
85 140 102 17 460 245
CH - 30 30 150
85 140 102 17 460 245
CH - 50 50 150
100 160 102 17 460 245
CH - 75 75 150
125 190 105 25 460 245
CH - 100 100 150
150 210 105 25 700 245
CH - 200 200 150
197 325 175 47 700 245
CH - 300 300 150
197 325 175 47 700 245

Usage of YOTA Brand

  • Cable Tensioning & Traction in Transmission Towers and
  • Aerial Ropeways
  • Crane & Derrick - Weighing &Testing
  • Tensile Testing for Insulators
  • Fastener and Anchor Testing
  • Guying Microwave Towers
  • Railway Signal Telecommunication
  • Drawbar Pull test
  • Testing Hoists and Blocks
  • Checking Structural Fabrication
  • Winch Testing
  • Transmission Line Hardware Testing
  • Sling Testing
  • Conveyor belt tensioning
  • Chain testing
